CPTS has completed over 6500 tests in Queensland alone



Site and project-specific vehicle modifications

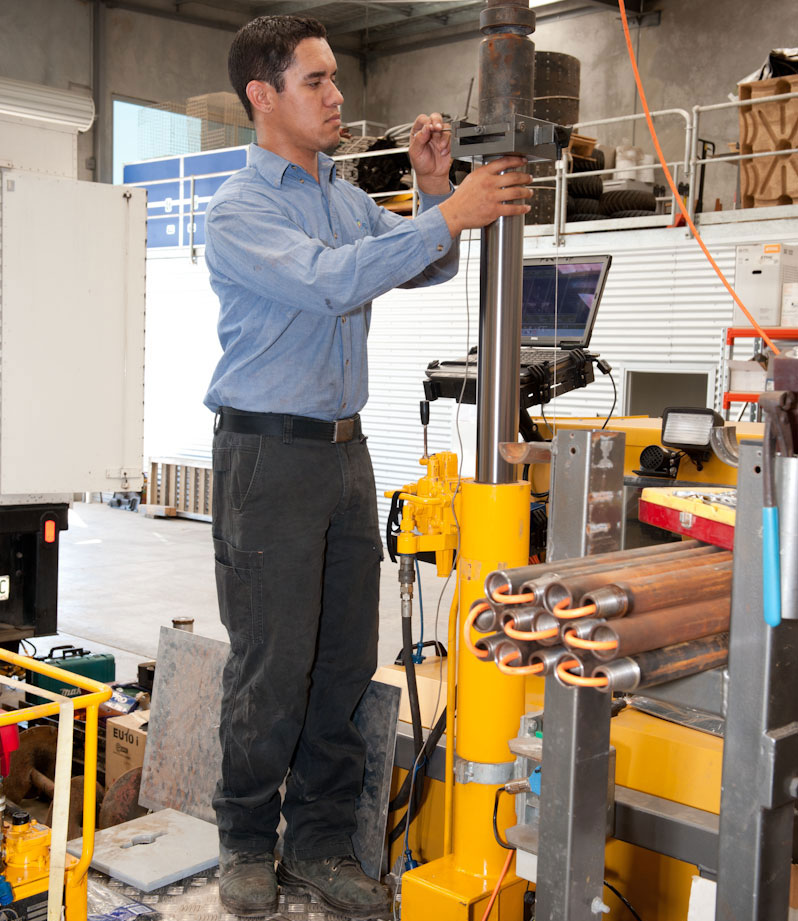

yvo oil checkyvo and martinmartin3CPTS is dedicated to solving our clients' soil test issues. Yvo is very familiar with various types of difficult-to-access sites and understands the transport and vehicular access challenges they present.


Yvo's team custom-modify test vehicles (when required) to meet these challenges and in some cases undertake additional modifications on-site to allow for the impacts of changing weather conditions on sensitive sites.





CPT Rig

  • 1. DSC01284

Specifications:

  • Pushing capacity: 13 tonnes
  • Pulling capacity: 25 tonnes
  • Test depth capacity: 39.5m as standard
  • Pushing speed: 20mm per second
  • Interior lighting
  • Quiet operation

This purpose built CPT rig has:

  • 6x4 Bogey drive with differential locks to enhance off-road capability
  • Weatherproof work environment for testing in inclement weather conditions
  • Custom built to ensure maximum productivity, reliability and safety.
  • Rapid set-up times: Ability to move quickly from one test location to the next.
  • On-board mobile broadband to enable immediate delivery of results.

Testing equipment that can be deployed:

  • Standard cone (CPT)
  • Piezocone (CPTu)
  • Dilatometer (DMT)
  • Seismic Dilatometer (SDMT)

Mini-Crawler

  • 016

Specifications:

  • Pushing capacity without anchoring: Approx 6 tonnes
  • Pushing capacity when anchored: Up to 20 tonnes
  • Track length/width: 2.2m * .5m each
  • Vehicle width: 2.1 metres
  • Vehicle weight: Approx. 8.5 tonnes

This rig can operate on:

  • Loose and sand sites including dunes
  • Wet and inundated sites
  • Muddy and slippery sites
  • Sites with difficult access
  • Sites where low ground pressures are required.
  • Tailings dams etc.

Testing equipment that can be deployed with this rig:

  • Standard cone (CPT)
  • Piezocone (CPTu)
  • Dilatometer (DMT)
  • Seismic Dilatometer (SDMT)
  • Vane Shear
  • Undisturbed soil sampling (Mostap)

CPT Crawler

  • 1. Cadia Gold Mine Tailings Dam

Specifications:

  • Pushing capacity without anchoring: Approx 6 tonnes
  • Pushing capacity when anchored: Up to 20 tonnes
  • Track length/width: 2.2m * .5m each
  • Vehicle width: 2.1 metres
  • Vehicle weight: Approx. 8.5 tonnes

This rig can operate on:

  • Loose and sand sites including dunes
  • Wet and inundated sites
  • Muddy and slippery sites
  • Sites with difficult access
  • Sites where low ground pressures are required.
  • Tailings dams etc.

Testing equipment that can be deployed with this rig:

  • Standard cone (CPT)
  • Piezocone (CPTu)
  • Dilatometer (DMT)
  • Seismic Dilatometer (SDMT)
  • Vane Shear
  • Undisturbed soil sampling (Mostap)

Centaur - 8 Wheel Drive Heavy Duty All Terrain Vehicle

  • 1. Centaur doing vibracore I think, Wiggins Island Nov 2011 file103

Able to run on tyres or tracks for soft terrain
Options:

  • 2 occupants and up to 680kg of cargo
  • 900kg towing capacity
  • CPT rig with up to 10t pushing capacity

Testing:

  • Piezocone
  • Dissipations
  • Dilatometer
  • Shear Vane

Specifications:

  • Weight: 2 tonnes
  • Pushing capacity: Up to 10t
  • Ground pressure: 14kPa (2 PSI)
  • Operational Environments
  • Mudflats
  • Flood plains
  • Low lying farmland
  • Difficult access sites
  • Coal tailings
  • Gold tailings
  • Shallow swamps / marshlands
  • Land reclamation works

Note: To achieve greater test depths, anchors may be installed using a hydraulic setting device.


Amphirol

  • 078

Vehicle Capabilities

  • Geotechnical Investigations
  • Piezocone
  • Shear Vane
  • Dilatometer
  • Sampling
  • Surveying

Accessible Sites

  • Tailings Disposal Areas
  • Marshlands
  • Mudflats
  • Reclamation works

Specifications:

  • Dimensions: 5.9m x 3.2m x 3.3m
  • Weight: 7 tonnes
  • Buoyancy: 5 tonnes

Hoverbarge and Argo

  • 008

Hoverbarge
Lifting capacity: 2000kg of cargo
Ground pressure: 0.2 PSI

Transport Capability:

  • Small drill rigs
  • Lightweight CPT rigs
  • Bulk water for drilling operations
  • Other equipment requiring transport over soft flat ground

‘Argo’ 8 Wheel Drive All Terrain Vehicles
Options:

  • 6 occupants or 4 all with seat belts
  • Tracks for low ground pressures
  • ATV trailer
  • 400L water tank and 2 occupants
  • Vibracore or CPT equipment

Hydratrek

  • 1. Hydratrek in amongst the water lillies

The Hydratrek is a fully amphibious vehicle which we have customised in-house to enable CPT testing. It has twin counter rotating props for river travel – this is a highly adaptable and productive machine.

Specifications:

  • A minimal ground pressure of 10kPa
  • Pushing capacity 10 tonnes
  • Fully amphibious
  • Twin 28cm counter rotating props for river travel
  • High productivity
  • Seating with seatbelts for 9 persons

Ideal for Accessing:

  • Tailings dams
  • Reclamation works
  • Tidal mud flats
  • Flooded terrain
  • Environmentally sensitive sites
  • Swamps and marshlands
